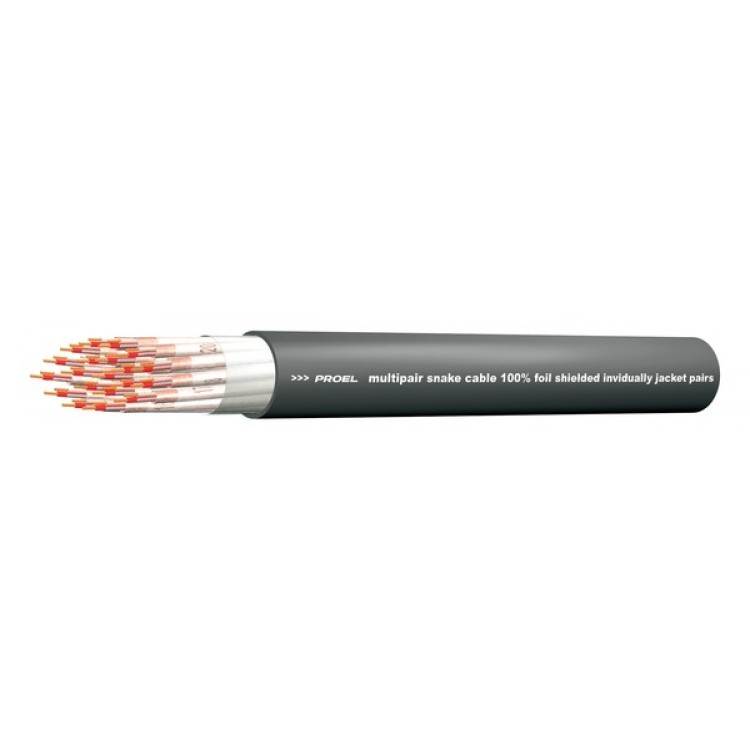

PROEL MULTICORE KABEL CMN16

Proizvajalec: Proel
Koda: 0631206
Zaloga: Na zalogi
Zaloga v skladiščih:
  • Trgovina MB
  • Trgovina Lj, Vošnjakova 16
  • Trgovina Muzikalije LJ
  • Trgovina MS
  • Skladišče MB
  • Trgovina SG
Podrobnosti:

PROEL MULTICORE KABEL CMN16 iz kategorije multicore kabli sodi med odlične Kabli in konektorji.PROEL MULTICORE KABEL CMN16 The CMN series of multipair cables consists of 100% shie ...
Preberi več

PROEL MULTICORE KABEL CMN16 iz kategorije multicore kabli sodi med odlične Kabli in konektorji.

PROEL MULTICORE KABEL CMN16

The CMN series of multipair cables consists of 100% shielded pairs individually insulated with number-printed transparent polypropylene (two XLPE jacket insulated conductors twisted together with drain wire in order to grant a total protection against crosstalk effects). The PVC overall jacket is made in accordance with CEI 20.20II and IEC 332.1 regulations (flame retardant jacket). Moreover, it offers a good flexibility even at very high temperatures. The cable extreme flexibility allows an easy winding.


Application fields: Live events monitoring
Stage boxes
Recording studios
Conductors: Bare copper
26 AWG = 18 x 0.10 mm (0.14 mm2)
Insulation: XLPE o 1 mm white/red
Shield: CONDUCTORS
Aluminium foil copper colour 100%
CABLE
Cotton tape 100%
Drain wire: Tinned copper
24 AWG = 7 x 0.18 mm (0.22 mm2)
Jacket: PAIRS
Number-printed transparent PP o 2.80 mm
CABLE
Flexible flame retardant PVC 60 shore
o 13.20 mm
Complying with CEI 20.20II / IEC 332.1 regulations
Conductor resistance: 127 Ohm/Km @ 20°C
Shied resistance: 99 Ohm/Km @ 20°C
Conductor/conductor capacitance: 52 pF/mt @1 KHz
Conductor/shield capacitance: 89 pF/mt @ 1 KHz
Nominal Impedance: 100 ± 3 Ohm
Attenuation: 1 MHz = 2.20 dB/100 mt
3 MHz = 3.90 dB/100 mt
6 MHz = 5.50 dB/100 mt
8 MHz = 6.40 dB/100 mt
10 MHz = 7.10 dB/100 mt
Velocity of propagation: 66 %
Operating temperature: -20°C / +80°C
Test voltage: 700 V AC
1000 V DC
Minumum bending radius: 10x overall diameter
Colours Available: Dull black
Notes: Custom packaging
PROEL MULTICORE KABEL CMN16 iz kategorije multicore kabli sodi med odlične Kabli in konektorji.

PROEL MULTICORE KABEL CMN16

The CMN series of multipair cables consists of 100% shielded pairs individually insulated with number-printed transparent polypropylene (two XLPE jacket insulated conductors twisted together with drain wire in order to grant a total protection against crosstalk effects). The PVC overall jacket is made in accordance with CEI 20.20II and IEC 332.1 regulations (flame retardant jacket). Moreover, it offers a good flexibility even at very high temperatures. The cable extreme flexibility allows an easy winding.


Application fields: Live events monitoring
Stage boxes
Recording studios
Conductors: Bare copper
26 AWG = 18 x 0.10 mm (0.14 mm2)
Insulation: XLPE o 1 mm white/red
Shield: CONDUCTORS
Aluminium foil copper colour 100%
CABLE
Cotton tape 100%
Drain wire: Tinned copper
24 AWG = 7 x 0.18 mm (0.22 mm2)
Jacket: PAIRS
Number-printed transparent PP o 2.80 mm
CABLE
Flexible flame retardant PVC 60 shore
o 13.20 mm
Complying with CEI 20.20II / IEC 332.1 regulations
Conductor resistance: 127 Ohm/Km @ 20°C
Shied resistance: 99 Ohm/Km @ 20°C
Conductor/conductor capacitance: 52 pF/mt @1 KHz
Conductor/shield capacitance: 89 pF/mt @ 1 KHz
Nominal Impedance: 100 ± 3 Ohm
Attenuation: 1 MHz = 2.20 dB/100 mt
3 MHz = 3.90 dB/100 mt
6 MHz = 5.50 dB/100 mt
8 MHz = 6.40 dB/100 mt
10 MHz = 7.10 dB/100 mt
Velocity of propagation: 66 %
Operating temperature: -20°C / +80°C
Test voltage: 700 V AC
1000 V DC
Minumum bending radius: 10x overall diameter
Colours Available: Dull black
Notes: Custom packaging
